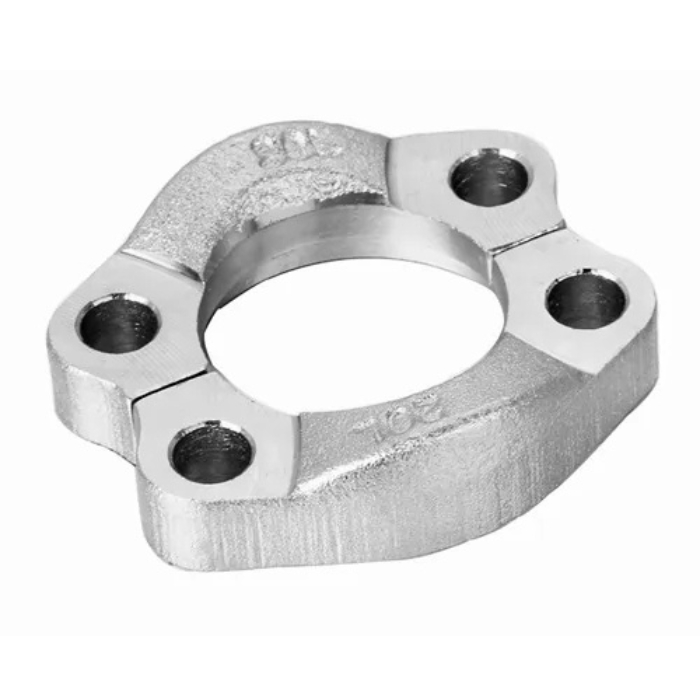

SAE J518 define the four blot split flange half, also be equal to BS ISO 6162-1/2:2012 version, it is a hydraulic flanged tube, pipe, hose connection. Flange connection with clamps there are two type: split flange and one-pieces flange clamps.

https://www.tiktok.com/@jiayuan_fitting/video/7443726401464700182?is_from_webapp=1&sender_device=pc&web_id=7439273787546486318

设置宽度

设置高度

左对齐

居中

右对齐

Product Description

Part No.: FL/FS

Features:

SAE J618 code 61 and ISO 6162-1 define the Flange connectors, ports and mounting surfaces for use at pressures of 3,5 MPa (35 bar) to 35 MPa (350 bar), DN 13 to DN 127

SAE J618 code 62 and ISO 6162-2 define the Flange connectors, ports and mounting surfaces for use at a pressure of 42 MPa (420 bar), DN 13 to DN 76.

代号 PART NO.	法兰型号 FLANGE SIZE	尺寸DIMENSIONS						配用螺栓 BOLT	压力等级 MPa
代号 PART NO.	法兰型号 FLANGE SIZE	A	B	d	h	M	N	配用螺栓 BOLT	压力等级 MPa
3000PSI
FL-08	1/2"	54	45.6	9	6.2	38.1	17.5	M8X25	34.5
FL-12	3/4"	65	51.8	11	6.2	47.6	22.2	M10X30
FL-16	1"	70	58.4	11	7.5	52.4	26.2	M10X30
FL-20	1.1/4"	79	72.6	11	7.5	58.7	30.2	M10X30	27.6
FL-24	1.1/2"	94	82.2	13.5	7.5	69.9	35.7	M12X35	20.7
FL-32	2"	102	96.4	13.5	9	77.8	42.9	M12X35	20.7
FL-40	2.1/2"	114	108.2	13.5	9	88.9	50.8	M12X40	17.2
FL-48	3"	135	130.6	17.5	9	106.4	61.9	M16X50	13.8
6000PSI
FS-08	1/2"	56	47.2	9	7.2	40.5	18.2	M8X30	42
FS-12	3/4"	71	60	11	8.2	50.8	23.8	M10X35
FS-16	1"	81	69.6	13.5	9	57.2	27.8	M12X45
FS-20	1.1/4"	95	77.2	13.5	9.8	66.6	31.8	M12X45
FS-24	1.1/2"	113	95	17.5	12	79.3	36.5	M16X55
FS-32	2"	133	113.8	22	12	96.8	44.5	M20X70
