Methods of JIC oil plugs assembly as per types: Male stud end with external Hex and internal Hex port plug for ISO 1192 O-ring Sealing port, Swivel JIC female 37°seat to Male JIC male 37°flared end, it is easy to stop or terminate the oil pipe line with one end connector

Product Description

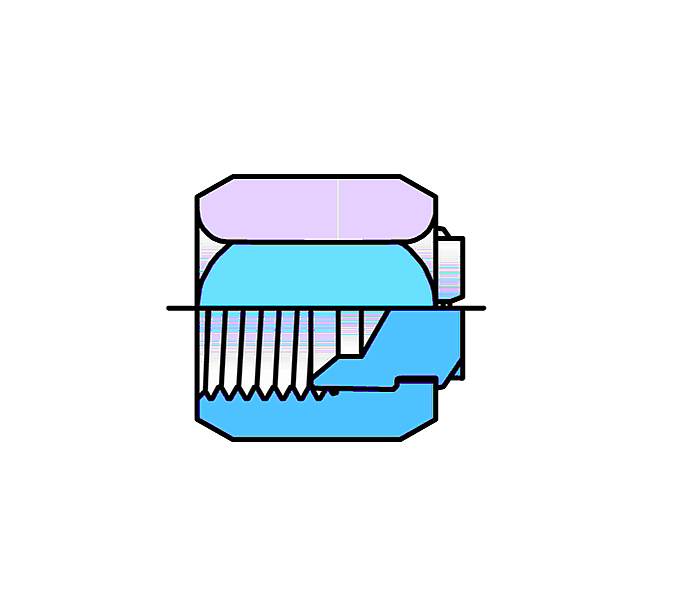

Part No.: JIC 74° FEMALE PLUG

Features:

➢Made of carbon steel, leak-proof and reliable.

➢Engineered for a secure and reliable seal, ensuring no fluid leaks.

➢Surface-treated for enhanced protection against rust and wear.

➢Conforms to JIC standards, making it suitable for various hydraulic systems.

➢Designed for quick and hassle-free assembly, reducing downtime.

Specifications

代号	螺纹 THREAD	尺寸 DIMENSIONS
PART NO.	E	L	S1
9J-04CAP	7/16"X20	15.1	15
9J-10CAP	7/8"X14	21.4	27
9J-05CAP	1/2"X20	15.5	17
9J-06CAP	9/16"X18	15.9	19
9J-08CAP	3/4"X16	19	24
9J-12CAP	1.1/16"X12	23	32
9J-20CAP	1.5/8"X12	27	50
9J-24CAP	1.7/8"X12	30.2	60
9J-32CAP	2.1/2"X12	36.5	75
9J-16CAP	1.5/16"X12	25.8	41
