JIC Swivel Female end is crimped nut assembly end on the body of connector, it is also according to SAE J514and ISO 8434-2:2005. It is flared tube end or male stud end to Swivel fittings type.

Product Description

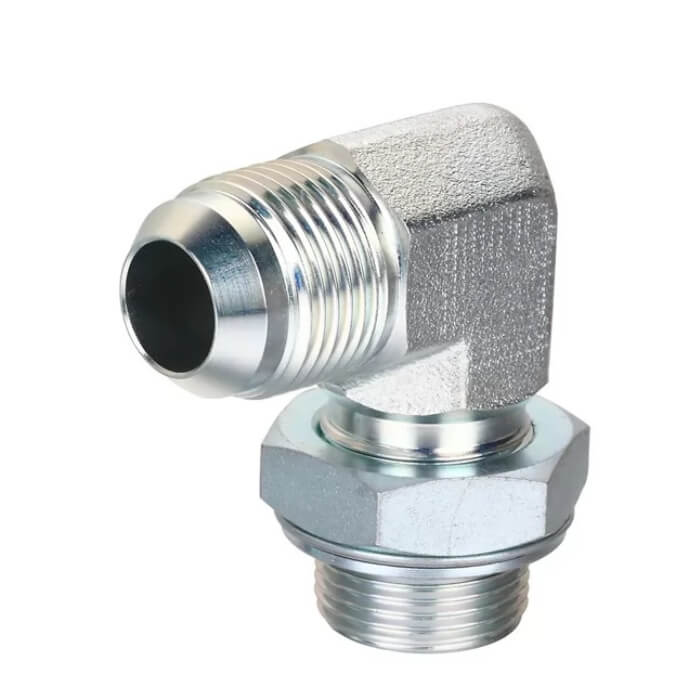

Part No.: 90° ELBOW JIC MALE 74° CONE / BSP MALE O-RING

Features:

➢Made of carbon steel, leak-proof and reliable.

➢Engineered for a secure and reliable seal, ensuring no fluid leaks.

➢Surface-treated for enhanced protection against rust and wear.

➢Conforms to JIC standards, making it suitable for various hydraulic systems.

➢Designed for quick and hassle-free assembly, reducing downtime.

Specifications

代号	螺纹 THREAD		O 形圈 O-RING		尺寸 DIMENSIONS
PART NO.	E	F		F 端	A	B	S1	S2
1JG9-04-02OG	7/16"X20	G1/8"X28		O011	24.5	26.2	11	14	G1/8"X28	O011
1JG9-04-06OG	7/16"X20	G3/8"X19		O113	27.5	36.8	16	22	G1/4"X19	O111
1JG9-04OG	7/16"X20	G1/4"X19		O111	26.6	31.3	14	19	G3/8"X19	O113
1JG9-05-04OG	1/2"X20	G1/4"X19		O111	26.5	31.8	14	19	G1/2"X14	O115
1JG9-05-06OG	1/2"X20	G3/8"X19		O113	27.5	35.8	16	22	G3/4"X14	O119
1JG9-05-08OG	1/2"X20	G1/2"X14		O115	31.5	43.2	22	27	G1"X11	O217
1JG9-06-04OG	9/16"X18	G1/4"X19		O111	26.9	31.3	14	19
1JG9-06-08OG	9/16"X18	G1/2"X14		O115	32.5	43.2	22	27
1JG9-06OG	9/16"X18	G3/8"X19		O113	28.5	35.8	16	22
1JG9-08-04OG	3/4"X16	G1/4"X19		O111	32	33.5	19	19
1JG9-08OG	3/4"X16	G1/2"X14		O115	34.8	43.2	22	27
1JG9-08-06OG	3/4"X16	G3/8"X19		O113	32	36.8	19	22
1JG9-08-12OG	3/4"X16	G3/4"X14		O119	37.9	49.3	27	32
1JG9-10-06OG	7/8"X14	G3/8"X19		O113	37.8	39.2	22	22
1JG9-10-08OG	7/8"X14	G1/2"X14		O115	37.8	43.2	22	27
1JG9-10-12OG	7/8"X14	G3/4"X14		O119	41	49.3	27	32
1JG9-12OG	1.1/16"X12	G3/4"X14		O119	44.2	49.3	27	32
1JG9-12-08OG	1.1/16"X12	G1/2"X14		O115	44.2	46.5	27	27
1JG9-12-16OG	1.1/16"X12	G1"X11		O217	48	53	33	41
1JG9-16OG	1.5/16"X12	G1"X11		O217	49	53	33	41
1JG9-16-12OG	1.5/16"X12	G3/4"X14		O119	49	53	33	32
1JG9-16-20OG	1.5/16"X12	G1.1/4"X11		O222	53.8	58	41	50
1JG9-20OG	1.5/8"X12	G1.1/4"X11		O222	55.5	58	41	50
1JG9-20-16OG	1.5/8"X12	G1"X11		O217	55.5	58	41	41
1JG9-24-16OG	1.7/8"X12	G1"X11		O217	62.5	63	48	41
1JG9-24-20OG	1.7/8"X12	G1.1/4"X11		O222	62.5	63	48	50
1JG9-24OG	1.7/8"X12	G1.1/2"X11		O224	62.5	63	48	55
