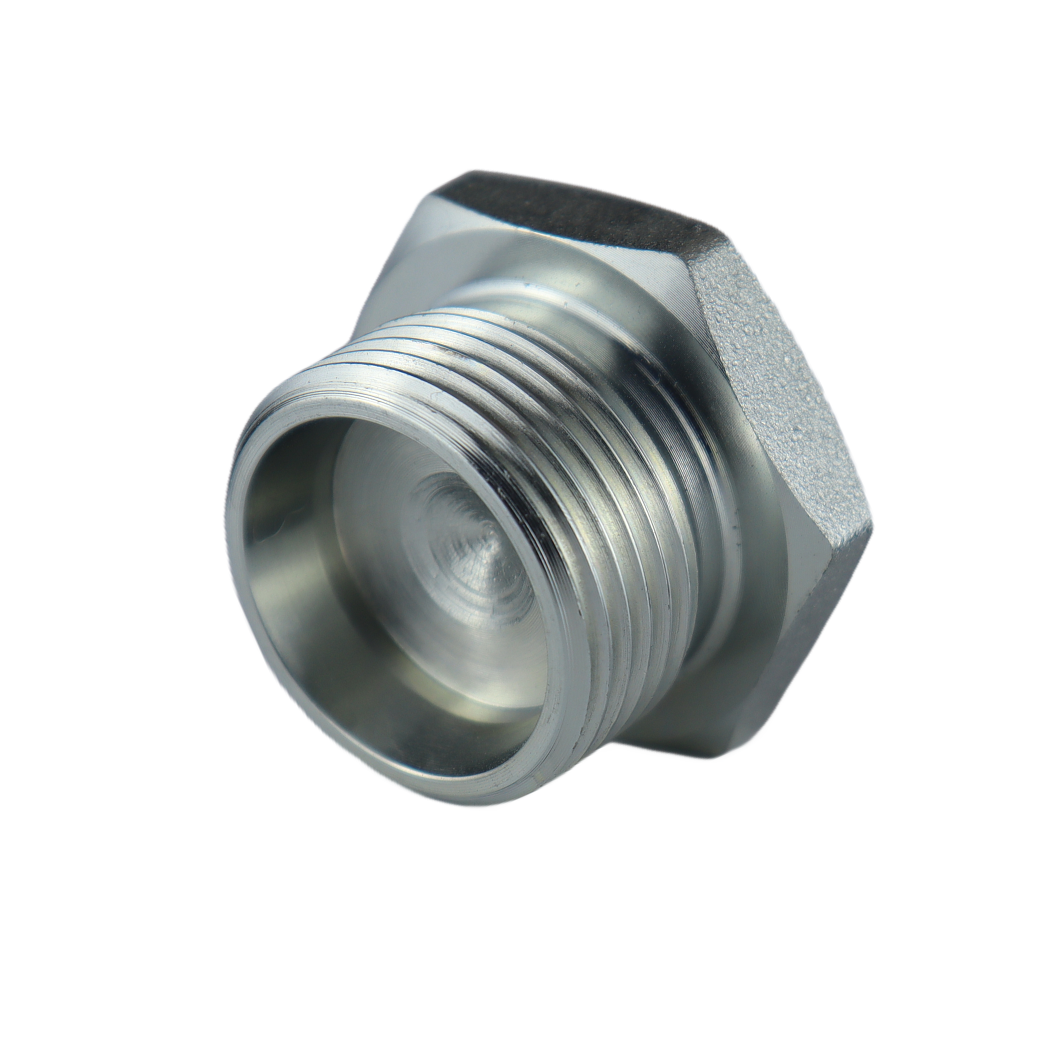

DIN 2353-4C PLUG

Description

Reviews

Key Characteristics

Standard: Manufactured according to DIN 2353 / ISO 8434-1.
Connection Method:
- 24° Compression Cutting Ring Seal: Provides a reliable, high-pressure seal by compressing onto the tube.
Material: Carbon steel, stainless steel, or other alloys.
Applications: Used to close off unused ports or tube ends, ensuring system integrity and preventing fluid leakage.

Product Description

Part No.: 4C,4D,4C-RN,4D-RN

Features:

➢Made of carbon steel, leak-proof and reliable.

➢Engineered for a secure and reliable seal, ensuring no fluid leaks.

➢Surface-treated for enhanced protection against rust and wear.

➢Conforms to JIC standards, making it suitable for various hydraulic systems.

➢Designed for quick and hassle-free assembly, reducing downtime.

Specifications

代号	螺纹 THREAD	管子外径 TUBE O.D.	尺寸 DIMENSIONS				压力等级
PART NO.	E	D1	l1	L1	S1	S2	MPa
4C-12	M12x1.5	6	7	22	12	14	31.5轻系列L
4C-14	M14x1.5	8	8	23	14	17
4C-16	M16x1.5	10	9	24	17	19
4C-18	M18x1.5	12	10	25	19	22
4C-22	M22x1.5	15	11	26	24	27
4C-26	M26X1.5	18	11.5	28	27	32
4C-30	M30x2	22	13.5	30	32	36	16轻系列L
4C-30D	M30x1.5	22	13.5	30	32	36
4C-36	M36x2	28	14.5	31	41	41
4C-36D	M36x1.5	28	14.5	31	41	41
4C-45	M45X2	35	14.5	36	46	50
4C-45D	M45X1.5	35	14.5	36	46	50
4C-52	M52X2	42	16	39	55	60
4D-14	M14X1.5	6	11	26	14	17	63重系列S
4D-16	M16X1.5	8	13	28	17	19
4D-18	M18x1.5	10	12.5	29	19	22
4D-20	M20x1.5	12	14.5	31	22	24
4D-22	M22x1.5	14	16	34	24	27
4D-24	M24x1.5	16	15.5	34	27	30	40重系列S
4D-30	M30x2	20	17.5	39	32	36
4D-36	M36x2	25	20	44	38	46
4D-42	M42x2	30	20.5	47	46	50
4D-52	M52X2	38	23	54	55	60	31.5 重系列S
注：如需带卡套及卡套螺母整套订货，则请在代号后加“RN”, 如 4C-30RN。 Note：In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part no.，for example 4C-30RN.
