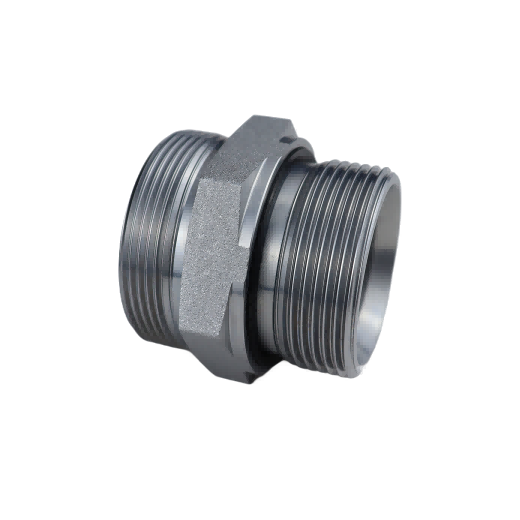

DIN 2353 METRIC THREAD WITH CAPTIVE SEAL(ED sealing ISO 9974)

Description

Reviews

Standard: Manufactured according to DIN 2353 (German Standard) and ISO 8434-1 (International Standard) for hydraulic fittings, which specify the dimensions, thread types, and materials for the fitting.

Connection Methods:

24° Compression Cutting Ring Seal: One end uses a 24° compression (bite-type) cutting ring that compresses onto the tube, forming a mechanical seal ideal for high-pressure hydraulic systems.
CAPTIVE SEAL (ED Seal): The other end features a CAPTIVE SEAL (ED Seal), providing a highly reliable and leak-resistant connection, compliant with ISO 9974 and metric threads (ISO 261).

Material: Typically made from carbon steel, stainless steel, or other alloys depending on the application and fluid compatibility.

Product Description

Part No.: 1CM-WD,1DM-WD,1CM-WD/RN,1DM-WD/RN

Features:

➢Made of carbon steel, leak-proof and reliable.

➢Engineered for a secure and reliable seal, ensuring no fluid leaks.

➢Surface-treated for enhanced protection against rust and wear.

➢Conforms to JIC standards, making it suitable for various hydraulic systems.

➢Designed for quick and hassle-free assembly, reducing downtime.

Specifications

代号	螺纹 THREAD		管子外径 TUBE O.D.	尺寸 DIMENSIONS					压力等级
PART NO.	E	F	D1	B	l1	L1	S1	S2	MPa
1CM-12-10WD	M12X1.5	M10X1	6	8	8.5	23	14	14	31.5轻系列L
1CM-14-12WD	M14X1.5	M12X1.5	8	12	10	25	17	17
1CM-16-12WD	M16X1.5	M12X1.5	10	12	11	25	17	19
1CM-16-14WD	M16X1.5	M14X1.5	10	12	11	26	19	19
1CM-16-18WD	M16X1.5	M18X1.5	10	12	12.5	27	24	19
1CM-18-16WD	M18X1.5	M16X1.5	12	12	12.5	27	22	22
1CM-18WD	M18X1.5	M18X1.5	12	12	12.5	27	24	22
1CM-18-22WD	M18X1.5	M22X1.5	12	14	14	29	27	22
1CM-22-18WD	M22X1.5	M18X1.5	15	12	13.5	29	24	27
1CM-22WD	M22X1.5	M22X1.5	15	14	15	30	27	27
1CM-26-22WD	M26X1.5	M22X1.5	18	14	14.5	31	27	32
1CM-30-26WD	M30X2	M26X1.5	22	16	16.5	33	32	36	16轻系列L
1CM-30-27WD	M30X2	M27X2	22	16	16.5	33	32	36
1CM-36-33WD	M36X2	M33X2	28	18	17.5	34	41	41
1CM-45-42WD	M45X2	M42X2	35	20	17.5	39	50	50
1CM-52-48WD	M52X2	M48X2	42	22	19	42	55	60
1DM-14-12WD	M14X1.5	M12X1.5	6	12	13	28	17	17	63重系列S
1DM-16-14WD	M16X1.5	M14X1.5	8	12	15	30	19	19
1DM-18-16WD	M18X1.5	M16X1.5	10	12	15	31	22	22
1DM-20-18WD	M20X1.5	M18X1.5	12	12	17	33	24	24
1DM-22-20WD	M22X1.5	M20X1.5	14	14	19	37	27	27
1DM-24-22WD	M24X1.5	M22X1.5	16	14	18.5	37	27	30	40重系列S
1DM-30-27WD	M30X2	M27X2	20	16	20.5	42	32	36
1DM-36-33WD	M36X2	M33X2	25	18	23	47	41	46
1DM-42WD	M42X2	M42X2	30	20	23.5	50	50	50
1DM-52-48WD	M52X2	M48X2	38	22	26	57	55	60	31.5重系列S
注：如需带卡套及卡套螺母整套订货，则请在代号后加“RN”,如1DM-20-18WD/RN。
Note：In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part no.，for example 1DM-20-18WD/RN.
