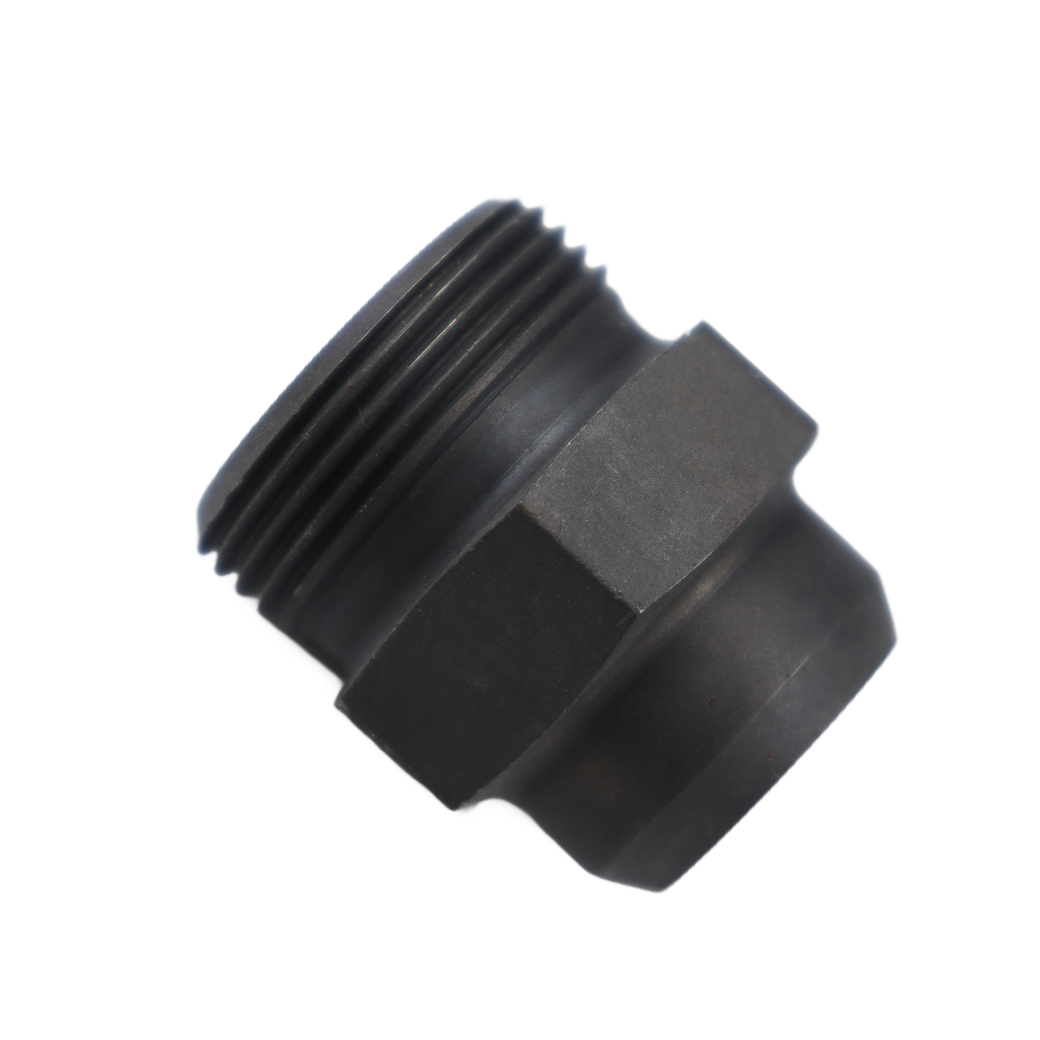

DIN 2353-Weld

Description

Reviews

Standard: Manufactured according to DIN 2353 / ISO 8434-1.

Connection Methods:

24° Compression Cutting Ring Seal: Forms a secure, high-pressure seal on the tube.
Weld End: Designed for direct welding to pipes, ensuring a strong and permanent connection.

Material: Carbon steel, stainless steel, or other alloys.

Product Description

Part No.: 1CW,1DW,1CW-RN,1DW-RN

Features:

➢Made of carbon steel, leak-proof and reliable.

➢Engineered for a secure and reliable seal, ensuring no fluid leaks.

➢Surface-treated for enhanced protection against rust and wear.

➢Conforms to JIC standards, making it suitable for various hydraulic systems.

➢Designed for quick and hassle-free assembly, reducing downtime.

Specifications

代号	螺纹 THREAD	管子外径 TUBE O.D.		尺寸 DIMENSIONS						压力等级
PART NO.	E	D1	D2	B	D	l1	L1	S1	S2	MPa
1CW-12-06	M12x1.5	6	6	7	10	7	22	12	14	31.5轻系列L
1CW-14-08	M14x1.5	8	8	8	12	8	23	14	17
1CW-16-10	M16x1.5	10	10	8	14	9	24	17	19
1CW-18-12	M18x1.5	12	12	8	16	10	25	19	22
1CW-22-15	M22x1.5	15	15	10	19	11	26	22	27
1CW-26-18	M26X1.5	18	18	10	22	11.5	28	27	32
1CW-26-22	M26X1.5	18	22	10	27	13.5	28	27	32	16轻系列L
1CW-30-22	M30x2	22	22	12	27	13.5	30	32	36
1CW-30-25	M30x2	22	25	12	31	13.5	30	32	36
1CW-36-28	M36x2	28	28	12	32	16.5	33	38	41
1CW-45-35	M45X2	35	35	14	40	14.5	36	46	50
1CW-52-42	M52X2	42	42	16	46	16	39	55	60
1DW-14-06	M14x1.5	6	6	7	11	11	26	14	17	63重系列S
1DW-16-08	M16x1.5	8	8	8	13	13	28	17	19
1DW-18-10	M18x1.5	10	10	8	15	12.5	29	19	22
1DW-20-12	M20x1.5	12	12	10	17	14.5	31	22	24
1DW-22-14	M22x1.5	14	14	10	19	16	34	24	27
1DW-24-16	M24x1.5	16	16	10	21	15.5	34	27	30	40重系列S
1DW-30-20	M30x2	20	20	12	26	17.5	39	32	36
1DW-36-25	M36x2	25	25	12	31	20	44	41	46
1DW-42-30	M42x2	30	30	14	36	20.5	47	46	50
1DW-52-38	M52X2	38	38	16	44	23	54	55	60	31.5重系列S
注：如需带卡套及卡套螺母整套订货，则请在代号后加“RN”,如1C9-30RN。
Note：In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part no.，for example 1C9-30RN.
