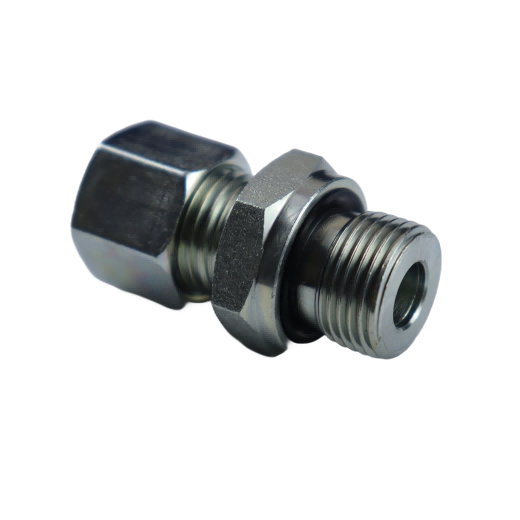

DIN 2353 BSP THREAD WITH CAPTIVE SEAL(ED sealing ISO 1179)

Description

Reviews

Standard: Manufactured according to DIN 2353 (German Standard) and ISO 8434-1 (International Standard) for hydraulic fittings, which specify the dimensions, thread types, and materials for the fitting.

Connection Methods:

24° Compression Cutting Ring Seal: One end uses a 24° compression (bite-type) cutting ring that compresses onto the tube, forming a mechanical seal ideal for high-pressure hydraulic systems.
CAPTIVE SEAL (ED Seal ISO 1179): The other end features a CAPTIVE SEAL (ED Seal), providing a highly reliable and leak-resistant connection, compliant with ISO 1179.

Thread Type: The CAPTIVE SEAL (ED Seal) end uses BSP threads (ISO 228), while the 24° compression cutting ring seal end uses metric threads (ISO 261).

Material: Typically made from carbon steel, stainless steel, or other alloys depending on the application and fluid compatibility.

Product Description

Part No.: 1CB-WD,1DB-WD,1CB-WD/RN,1DB-WD/RN

Features:

➢Made of carbon steel, leak-proof and reliable.

➢Engineered for a secure and reliable seal, ensuring no fluid leaks.

➢Surface-treated for enhanced protection against rust and wear.

➢Conforms to JIC standards, making it suitable for various hydraulic systems.

➢Designed for quick and hassle-free assembly, reducing downtime.

Specifications

代号	螺纹 THREAD		管子外径 TUBE O.D.	尺寸 DIMENSIONS					压力等级
PART NO.	E	F	D1	B	l1	L1	S1	S2	MPa
1CB-12-02WD	M12X1.5	G1/8"X28	6	8	8.5	23.5	14	14	31.5轻系列L
1CB-12-04WD	M12X1.5	G1/4"X19	6	12	10	25	19	14
1CB-12-06WD	M12X1.5	G3/8"X19	6	12	11.5	26.5	22	14
1CB-14-02WD	M14X1.5	G1/8"X28	8	8	9	24	14	17
1CB-14-04WD	M14X1.5	G1/4"X19	8	12	10	24	19	17
1CB-14-06WD	M14X1.5	G3/8"X19	8	12	11	26	22	17
1CB-16-04WD	M16X1.5	G1/4"X19	10	12	11	24.5	19	19
1CB-16-06WD	M16X1.5	G3/8"X19	10	12	12.5	26	22	19
1CB-16-08WD	M16X1.5	G1/2"X14	10	14	13	28	27	19
1CB-18-04WD	M18X1.5	G1/4"X19	12	12	12	27	19	22
1CB-18-06WD	M18X1.5	G3/8"X19	12	12	12.5	26	22	22
1CB-18-08WD	M18X1.5	G1/2"X14	12	14	14	28	27	22
1CB-22-04WD	M22X1.5	G1/4"X19	15	12	13	28	24	27
1CB-22-06WD	M22X1.5	G3/8"X19	15	12	13.5	28	24	27
1CB-22-08WD	M22X1.5	G1/2"X14	15	14	14	29	27	27
1CB-22-12WD	M22X1.5	G3/4"X14	15	16	15	29	32	27
1CB-26-08WD	M26X1.5	G1/2"X14	18	14	14.5	31	27	32
1CB-26-12WD	M26X1.5	G3/4"X14	18	16	14.5	31	32	32
1CB-30-12WD	M30X2	G3/4"X14	22	16	16.5	33	32	36	16轻系列L
1CB-36-16WD	M36X2	G1"X11	28	18	17.5	34	41	41
1CB-45-20WD	M45X2	G1.1/4"X11	35	20	17.5	39	50	50
1CB-52-24WD	M52X2	G1.1/2"X11	42	22	19	42	55	60
1DB-14-04WD	M14X1.5	G1/4"X19	6	12	15		19	17	63重系列S
1DB-16-04WD	M16X1.5	G1/4"X19	8	12	15	30	19	19
1DB-16-06WD	M16X1.5	G3/8"X19	8	12	15.5	30	22	19
1DB-18-04WD	M18X1.5	G1/4"X19	10	12	14.5	31	19	22
1DB-18-06WD	M18X1.5	G3/8"X19	10	12	14.5	31	22	22
1DB-18-08WD	M18X1.5	G1/2"X14	10	14	17.5	34	27	22
1DB-20-04WD	M20X1.5	G1/4"X19	12	12	16.5	33	22	24
1DB-20-06WD	M20X1.5	G3/8"X19	12	12	15	33	22	24
1DB-20-08WD	M20X1.5	G1/2"X14	12	14	17.5	34	27	24
1DB-22-08WD	M22X1.5	G1/2"X14	14	14	19	37	27	27
1DB-24-06WD	M24X1.5	G3/8"X19	16	12	18	36.5	27	30	40重系列S
1DB-24-08WD	M24X1.5	G1/2"X14	16	14	18.5	37	27	30
1DB-24-12WD	M24X1.5	G3/4"X14	16	16	20.5	39	32	30
1DB-30-12WD	M30X2	G3/4"X14	20	16	20.5	42	32	36
1DB-36-08WD	M36X2	G1/2"X14	25	14	23	47	41	46
1DB-36-12WD	M36X2	G3/4"X14	25	16	23	47	41	46
1DB-36-16WD	M36X2	G1"X11	25	18	23	47	41	46
1DB-42-20WD	M42X2	G1.1/4"X11	30	20	23.5	50	50	50
1DB-52-24WD	M52X2	G1.1/2"X11	38	22	26	57	55	60	31.5 重系列S
注：如需带卡套及卡套螺母整套订货，则请在代号后加“RN”, 如 1DB-20-08WD/RN。
Note：In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part no.，for example 1DB-20-08WD/RN.
