This TEE utilizes two primary sealing methods to ensure a leak-proof connection:
Metric Male 24° Cone Sealing (DIN 2353 Side)
The metric male end features a 24° cone with an elastomer O-ring, providing a metal-to-metal seal reinforced by an additional elastomeric element.
A cutting ring deforms onto the tube upon tightening, creating a strong mechanical grip and preventing loosening under pressure.
Metric Male Adjustable Stud End (ISO 6149-2) with O-Ring Sealing
The adjustable stud end follows ISO 6149-2, featuring a straight metric thread with an O-ring at the base.
The O-ring sits in a precision-machined port cavity, ensuring a reliable static seal without additional sealants.
This design allows easy orientation adjustment before final tightening, providing installation flexibility.
Product Description

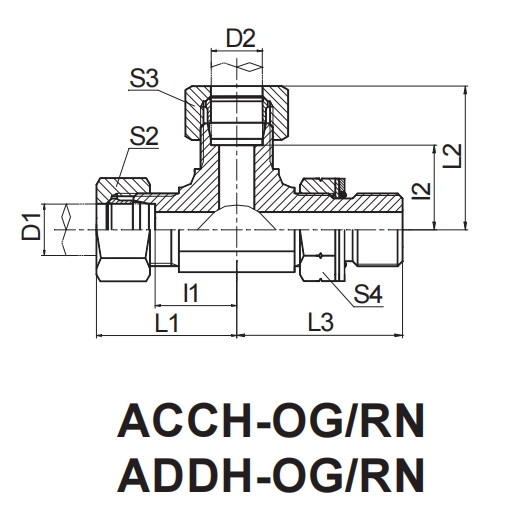

Part No.: ACCH-OG/RN,ADDH-OG/RN; ACCH-OG,ADDH-OG
Features:
➢Made of carbon steel, leak-proof and reliable.
➢Engineered for a secure and reliable seal, ensuring no fluid leaks.
➢Surface-treated for enhanced protection against rust and wear.
➢Conforms to JIC standards, making it suitable for various hydraulic systems.
➢Designed for quick and hassle-free assembly, reducing downtime.
Specifications
代 号
螺 纹 THREAD
管子外径 D1,D2
O 形 圈
尺 寸 DIMENSIONS
压力等级
PART NO.
MPa
E,F
G
TUBE O.D.
O RING
l1,l2
L1,L2
L3
S1
S2,S3
S4
ACCH-12-12-10OG
M12X1.5
M10X1
6
O08.1X1.6
13
28
26.5
11
14
14
31.5轻系列L
ACCH-14-14-12OG
M14X1.5
M12X1.5
8
O09.3X2.4
15.5
30.5
32
14
17
17
ACCH-16-16-14OG
M16X1.5
M14X1.5
10
O11.3X2.4
17.5
32.5
34
16
19
19
ACCH-18-18-16OG
M18X1.5
M16X1.5
12
O13.3X2.4
19
34
36
19
22
22
ACCH-22-22-18OG
M22X1.5
M18X1.5
15
O15.3X2.4
22
37
39.5
22
27
24
ACCH-26-26-22OG
M26X1.5
M22X1.5
18
O19.3X2.4
25.5
42
43.5
27
32
27
ACCH-30-30-27OG
M30X2
M27X2
22
O23.5X3.0
29.3
45.8
50
30
36
32
16轻系列L
ACCH-36-36-33OG
M36X2
M33X2
28
O29.2X3.0
33.3
49.8
54
36
41
41
ADDH-14-14-12OG
M14X1.5
M12X1.5
6
O09.3X2.4
17.5
32.5
32
14
17
17
63重系列S
ADDH-16-16-14OG
M16X1.5
M14X1.5
8
O11.3X2.4
18.7
33.7
34
16
19
19
ADDH-18-18-16OG
M18X1.5
M16X1.5
10
O13.3X2.4
19.5
36
36
19
22
22
ADDH-20-20-18OG
M20X1.5
M18X1.5
12
O15.3X2.4
19.5
36
37
19
24
24
ADDH-24-24-22OG
M24X1.5
M22X1.5
16
O19.3X2.4
24
42
37.5
24
30
27
ADDH-30-30-27OG
M30X2
M27X2
20
O23.5X3.0
28.3
49.8
50
30
36
32
40重系列S
ADDH-36-36-33OG
M36X2
M33X2
25
O29.2X3.0
32.8
56.8
54
36
46
41
ADDH-42-42-42OG
M42X2
M42X2
30
O38.5X3.0
36.2
62.7
57.2
41
50
50
注：1 如需带卡套及卡套螺母整套订货，则请在代号后加“RN”,如ACCH-30-30-27OG/RN。 2 G端与ISO 9974-1油口相配，去掉挡圈则与 ISO 6149-1油口相配。
Note：1 In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part no.，for example ACCH-30-30-27OG/RN. 2 G end is connected with ISO 9974-1 port and connected with ISO 6149-1 port without retaining ring.
