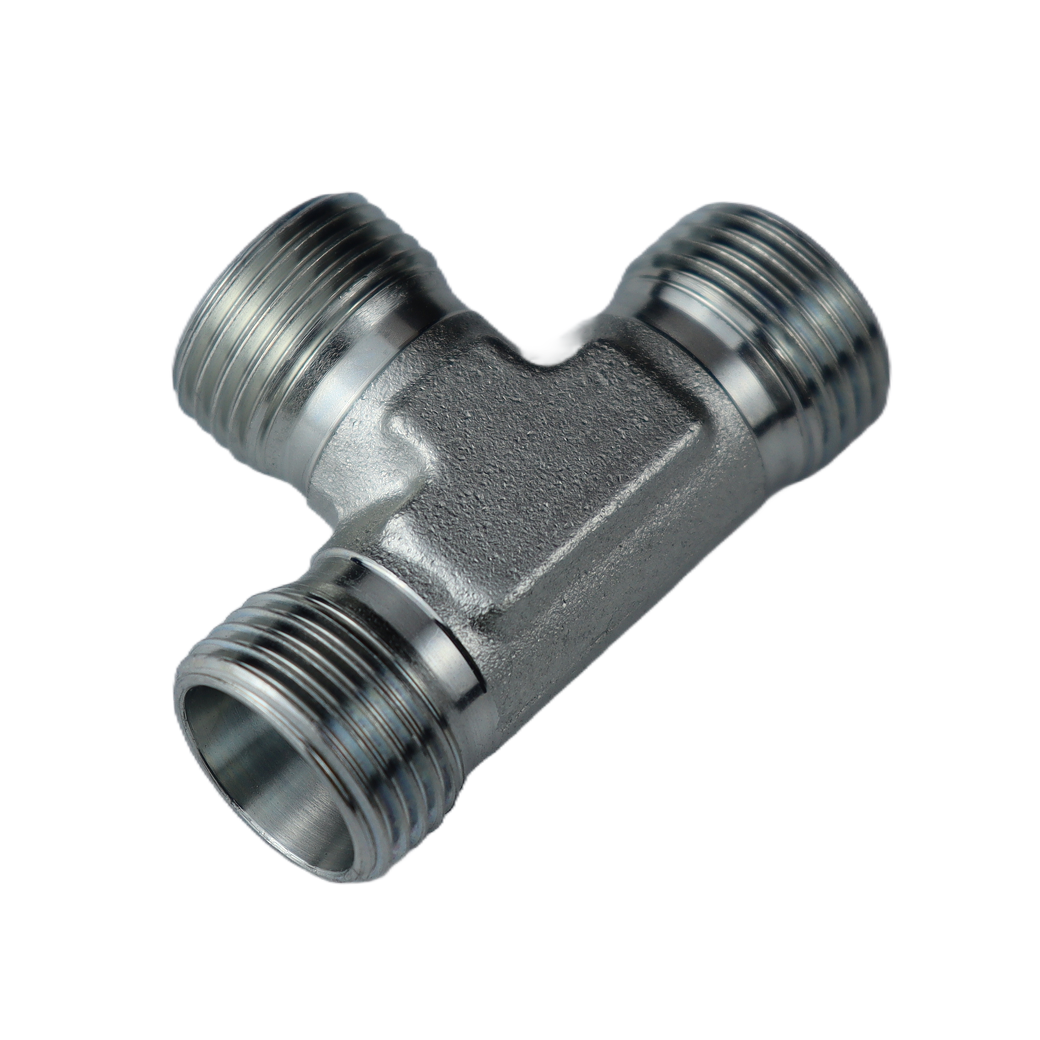

DIN 2353-(AC)EQUAL TEES

Description

Reviews

1. Seal

Equal Branch Design: All three ports have the same tube size and 24° cone connection.

Thread Type: Metric threads for assembly with cutting ring fittings.

Sealing Mechanism: Uses a cutting ring (DIN 3861) and compression nut for a secure and leak-free seal.

2. Types of Equal Tees in DIN 2353

L-Series (Light Duty): Designed for medium-pressure systems (up to ~315 bar).

S-Series (Heavy Duty): Built for high-pressure applications (up to ~630 bar).

3. Material Options

Carbon Steel (Zinc-Plated) – Standard for hydraulic applications.

Stainless Steel (AISI 316L) – Corrosion-resistant, used in marine, food, and chemical industries.

Brass – Suitable for low-pressure pneumatic and fluid systems.

Product Description

Part No.: AC,AD; AC-RN,AD-RN

Features:

➢Made of carbon steel, leak-proof and reliable.

➢Engineered for a secure and reliable seal, ensuring no fluid leaks.

➢Surface-treated for enhanced protection against rust and wear.

➢Conforms to JIC standards, making it suitable for various hydraulic systems.

➢Designed for quick and hassle-free assembly, reducing downtime.

Specifications

代号	螺纹 THREAD	管子外径 TUBE O.D.		尺寸	DIMENSIONS		压力等级
PART NO.	E ,F ,G	D1 , D2 ,D3	l1,l2,l3	L1,L2,L3	S1	S2,S3,S4	MPa
AC-08	M8X1	4	11	21	9	10	10特轻系列LL
AC-10	M10X1	5	9.5	21	9	12
AC-10LL	M10X1	6	9.5	21	9	12
AC-12LL	M12X1	8	11.5	23	12	14
AC-12	M12X1.5	6	12	27	12	14	25轻系列V
AC-14	M14X1.5	8	14	29	12	17
AC-16	M16X1.5	10	15	30	14	19
AC-18	M18X1.5	12	17	32	17	22
AC-22	M22X1.5	15	21	36	19	27
AC-26	M26X1.5	18	23.5	40	24	32
AC-30	M30X2	22	27.5	44	27	36	16轻系列L
AC-36	M36X2	28	30.5	47	36	41
AC-45	M45X2	35	34.5	56	41	50
AC-52	M52X2	42	40	63	50	60
AD-14	M14X1.5	6	16	31	12	17	63重系列S
AD-16	M16X1.5	8	17	32	14	19
AD-18	M18X1.5	10	17.5	34	17	22
AD-20	M20X1.5	12	21.5	38	17	24
AD-22	M22X1.5	14	22	40	19	27
AD-24	M24X1.5	16	24.5	43	24	30	40重系列S
AD-30	M30X2	20	26.5	48	27	36
AD-36	M36X2	25	30	54	36	46
AD-42	M42X2	30	35.5	62	41	50
AD-52	M52X2	38	41	72	50	60	31.5重系列S
注：如需带卡套及卡套螺母整套订货，则请在代号后加“RN”,如AC-22RN。
Note：In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part no.，for example AC-22RN.
