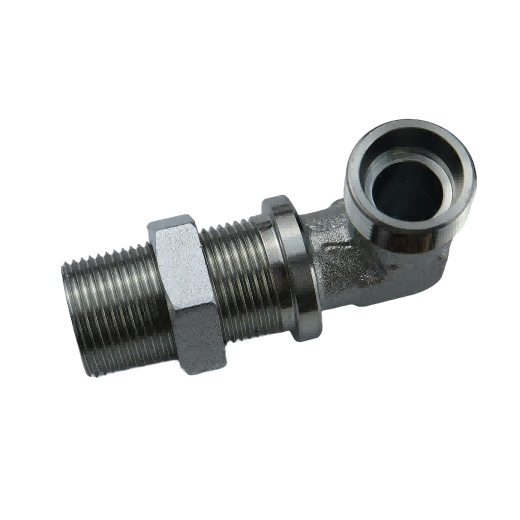

DIN 2353-(6C9) 90° ELBOW BULKHEAD FITTINGS

Description

Reviews

One End: Metric Male Thread with 24° Cone

Features a male metric thread with a 24° cone for compression fitting connections.
Compatible with DIN 2353 cutting rings and nuts for a reliable seal.
Available in L series (Light) and S series (Heavy) for different pressure requirements.

Other End: Metric Compression Fitting (90° Elbow)

Provides a right-angle (90°) outlet, allowing directional changes in tubing.
Designed for tight spaces where a straight fitting isn’t practical.

Bulkhead Mounting with Locknut

Passes through a wall or panel to connect tubing on both sides.
Secured with a locknut to keep the fitting firmly in place.

Product Description

Part No.: 6C9,6D9; 6C9-LN,6D9-LN; 6C9-RN,6D9-RN; 6C9-LN/RN,6D9-LN/RN

Features:

➢Made of carbon steel, leak-proof and reliable.

➢Engineered for a secure and reliable seal, ensuring no fluid leaks.

➢Surface-treated for enhanced protection against rust and wear.

➢Conforms to JIC standards, making it suitable for various hydraulic systems.

➢Designed for quick and hassle-free assembly, reducing downtime.

Specifications

代号	螺纹	THREAD		管子外径 TUBE O.D.				尺	寸	DIMENSIONS					压力等级
PART NO.	E		F	D1	D2	l1	l2	l3	L1		L2	S1	S2,S3	S4	MPa
6C9-12	M12X1.5		M12X1.5	6	6	27	12	14	42		27	12	14	17	31.5轻系列L
6C9-14	M14X1.5		M14X1.5	8	8	27	14	17	42		29	12	17	19
6C9-16	M16X1.5		M16X1.5	10	10	28	15	18	43		30	14	19	22
6C9-18	M18X1.5		M18X1.5	12	12	29	17	20	44		32	17	22	24
6C9-22	M22X1.5		M22X1.5	15	15	31	21	23	46		36	19	27	30
6C9-26	M26X1.5		M26X1.5	18	18	32.5	23.5	24	49		40	24	32	36
6C9-30	M30X2		M30X2	22	22	34.5	27.5	30	51		44	27	36	41	16轻系列L
6C9-36	M36X2		M36X2	28	28	35.5	30.5	34	52		47	36	41	46
6C9-45	M45X2		M45X2	35	35	36.5	34.5	39	58		56	41	50	55
6C9-52	M52X2		M52X2	42	42	36	40	43	59		63	50	60	65
6D9-14	M14X1.5		M14X1.5	6	6	29	16	17	44		31	12	17	19	63重系列S
6D9-16	M16X1.5		M16X1.5	8	8	29	17	18	44		32	14	19	22
6D9-18	M18X1.5		M18X1.5	10	10	29.5	17.5	20	46		34	17	22	24
6D9-20	M20X1.5		M20X1.5	12	12	30.5	21.5	21	47		38	17	24	27
6D9-22	M22X1.5		M22X1.5	14	14	32	22	23	50		40	19	27	30
6D9-24	M24X1.5		M24X1.5	16	16	31.5	24.5	24	50		43	24	30	32	40重系列S
6D9-30	M30X2		M30X2	20	20	33.5	26.5	30	55		48	27	36	41
6D9-36	M36X2		M36X2	25	25	35	30	34	59		54	36	46	46
6D9-42	M42X2		M42X2	30	30	37.5	35.5	39	64		62	41	50	50
6D9-52	M52X2		M52X2	38	38	37	41	43	68		72	50	60	65	31.5重系列S
注：如需带锁母订货，则请在代号后加“LN”,如6C9-30LN；如需带卡套及卡套螺母订货，在代号后加“RN”,如6C9-30RN；如需带锁母、卡套及卡套螺母订货，在代号后加“LN/RN”，如6C9-30LN/RN。
Note：In case if you are interested to order the adapter with lock nut,please insert suffix "LN" after our part no.for example 6C9- 30LN,order the adapter with cutting ring and nut,insert suffix "RN" after part no.,for example 6C9-30RN,order the adapter with lock nut and cutting ring and nut,insert suffix "LN/RN" after part no.,for example 6C9-30LN/RN.
